AetheriNex was founded in 2008 and is a specialized and innovative enterprise in China. It is at the forefront of drone detection, identification, positioning, tracking, and control, and is committed to providing globally leading low altitude safety control solutions. Our main products: Individual Soldier Drone Detection Device，Portable Counter-Drone System (PCDS)，TDOA，Full frequency AOA detection equipment，Full frequency directional countermeasure equipment，Fixed unmanned aerial vehicle navigation deception device etc.

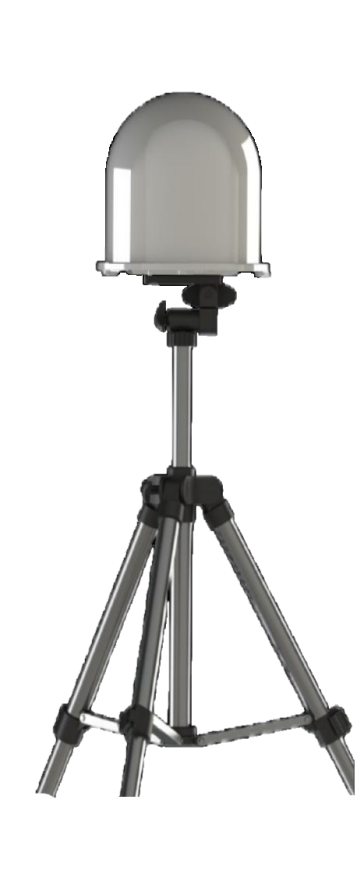

Multi site networking positioning: Multi site networking based on TDOA technology can achieve multi brand model positioning with a positioning accuracy of up to 10m Identification of all models: capable of recognizing common models such as DJI and Daotong, as well as over 800 types of models such as homemade machines and time traveling machines Black and White List: Effectively Distinguishing Cooperative and Non Cooperative Drones Low false alarm rate: average false alarm rate<1 time/day Passive detection: Passive detection, does not actively emit electromagnetic signals, environmentally friendly, high concealment Strong anti-interference ability: stable operation in complex urban environments

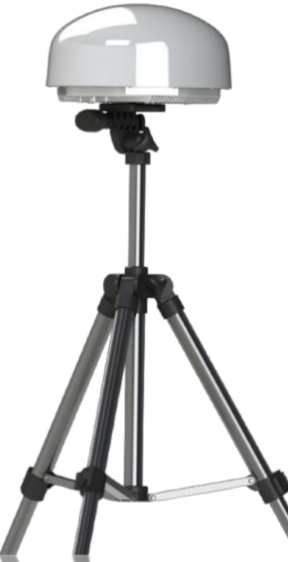

GPS/L1(1575.42MHz±1.023MHz)､ BDS/B1(1561.098MHz±2.046MHz)､ GLONASS/G1(1602MHz±4MHz)､GALILEO/E1(1575.42MHz±12.276MHz) Airspace coverage: azimuth coverage: 0 °~360 ° Operating distance:>5km (without visual indication of typical models in Xinjiang) Deception control effective time: With the cooperation of high-precision radar data, the average effective time of device deception is less than 10 seconds Concurrent number of drone deception: unlimited Output power: adjustable range 0-40dBm Device initialization time: 5-8 minutes Equipped with automatic north finding function

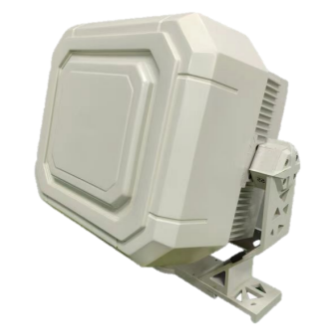

1. Adopt radio suppression on mainstream remote control frequency bands and navigation frequency bands for low, small, and slow unmanned aerial vehicles to achieve regional protection and control; 2. Adopt wide beam antenna technology and control the beam angle to be wide; 3. By using efficient radio interference technology, it is possible to drive away and make emergency landings of controlled drones; 4. It can be fixedly installed according to the scene, and the interference angle can be adjusted; 5. Easy to use, remote control can be used to achieve remote wired or wireless control.

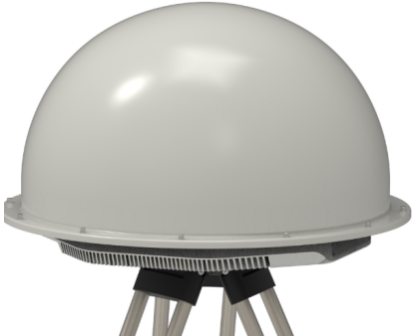

AOA Technology Fundamentals: Determines the angle of a signal source by measuring phase differences, time differences, or beamforming variations of signals arriving at an antenna array. Full-Band Coverage: Operates across a wide frequency spectrum from low-frequency (e.g., HF) to high-frequency bands (e.g., millimeter wave, 100 MHz to 40 GHz) and supports compatibility with diverse communication protocols (5G, Wi-Fi, satellite, etc.).Scanning frequency range: 300MHz~6000MHz; Detection angle: Direction angle 0 °~360 °; Real time monitoring bandwidth: ≥ 120MHz; Detection range: ≥ 8km (clear air environment, targeting DJI Yu 2 aircraft); Direction finding accuracy: ≤ 2 ° (clear space environment, with DJI Yuji as a typical target, rms).
